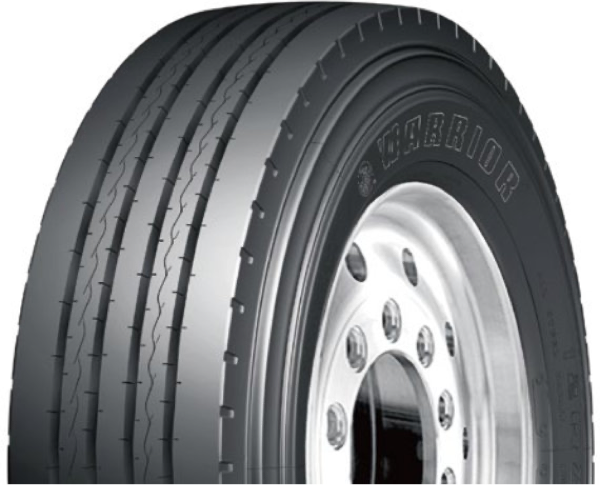

WT100
WT100

Regional

Trailer

● Outstanding resistance to uneven wear. ● Long mileage. ● The width of tread running surface and the density of pattern are increased to promote driving distance and operation efficiency. ● Finite element optimization tire crown design and rugged shoulder pattern reduce uneven wear and prolong service life. ● Complex angle design of grooves protects carcass, avoids stone pinching, improves puncture-resistant performance.

Tyre Size Ply Rating Load Index Speed Symbol Overall Diameter(mm) Section Width(mm) Thread Width(mm) Thread Depth(mm) Rim Single Max L/P(kg/kPa) Dual Max L/P(kg/kPa)
12R22.5 16PR 150/147 L 1082 298 230 15.5 9.00 3350kg(7390lbs)/830kPa(120psi) 3075kg(6780lbs)/830kPa(120psi)
12R22.5 18PR 152/149 L 1082 298 230 15.5 9.00 3550kg(7830lbs)/930kPa(135psi) 3250kg(7160lbs)/930kPa(135psi)
295/75R22.5 14PR 144/141 M 1016 297 218 10 9.00 2800kg(6175lbs)/760kPa(110psi) 2575kg(5675lbs)/760kPa(110psi)
