WS405
WS405

Long Haul

All Position

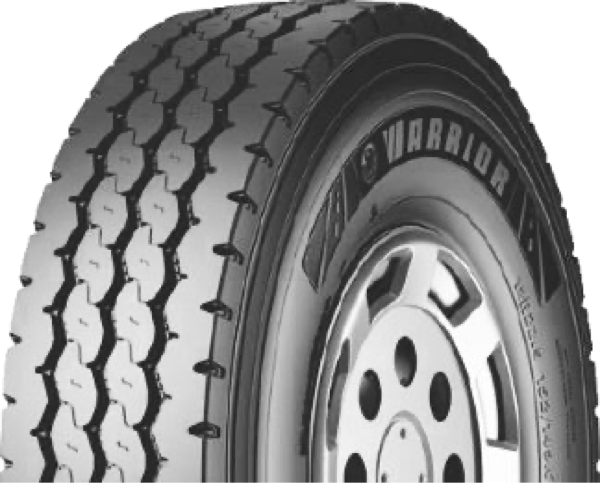

● Special tread formula improves tire wear resistance. ● The strip-shaped main groove with a certain curvature is designed to meet the steering requirements of the guide wheels. ● The horizontal open pattern design on the shoulders provides better grip. ● Open shoulder design improves tire heat dissipation.

Tyre Size Ply Rating Load Index Speed Symbol Overall Diameter(mm) Section Width(mm) Thread Width(mm) Thread Depth(mm) Rim Single Max L/P(kg/kPa) Dual Max L/P(kg/kPa)
7.50R16LT 14PR 122/118 L 809 211 166 14.5 6.00G 1500kg(3305lbs)/770kPa(112psi) 1320kg(2910lbs)/770kPa(112psi)
8.25R16LT 18PR 132/128 L 866 232 180 15 6.50H 2000kg(4410lbs)/870kPa(126psi) 1800kg(3970lbs)/870kPa(126psi)
12R22.5 18PR 152/149 K 1082 297 236 17.5 9.00 3550kg(7830lbs)/930kPa(135psi) 3250kg(7160lbs)/930kPa(135psi)
