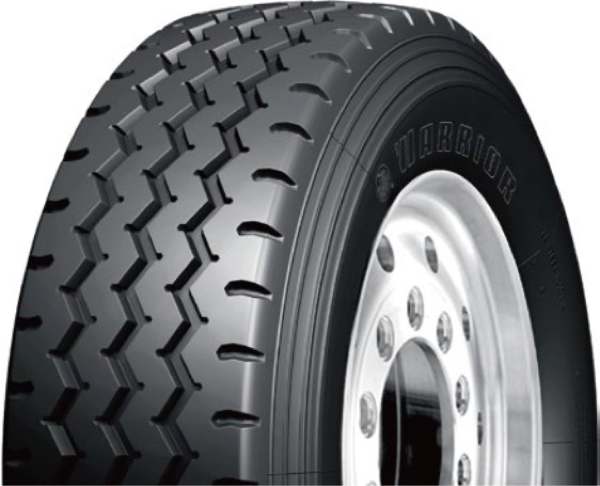

WS403
WS403

Regional

All Position

● Specific tread compound increases wear resistance. ● Longitudinal curved groove meets steering needs; open shoulder design provides better traction. ● Open shoulder construction improves tyre heat dissipation. ● Outstanding abrasion-resistance ● Excellent wheel adaptability ● Outstanding heat dissipation performance

Tyre Size Ply Rating Load Index Speed Symbol Overall Diameter(mm) Section Width(mm) Thread Width(mm) Thread Depth(mm) Rim Single Max L/P(kg/kPa) Dual Max L/P(kg/kPa)
7.00R16LT 14PR 118/114 L 775 200 160 12 5.50F 1320kg(2910lbs)/770kPa(112psi) 1180kg(2600lbs)/770kPa(112psi)
7.50R16LT 14PR 122/118 L 811 211 148 13 6.00G 1500kg(3305lbs)/770kPa(112psi) 1320kg(2910lbs)/770kPa(112psi)
8.25R16LT 16PR 128/124 J 867 232 168 15 6.50H 1800kg(3970lbs)/770kPa(112psi) 1600kg(3525lbs)/770kPa(112psi)
8.25R20 14PR 136/134 K 975 235 164 15 6.5 2240kg(4940lbs)/830kPa(120psi) 2120kg(4675lbs)/830kPa(120psi)

‍
