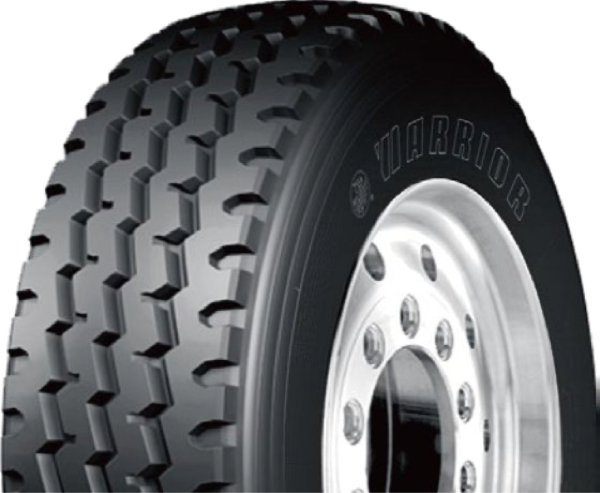

WS401
WS401

Regional

All Position

● Specific tread compound increases wear resistance. ● Longitudinal curved groove meets steering needs; open shoulder design provides better traction. ● Open shoulder construction improves tyre heat dissipation. ● Outstanding abrasion-resistance ● Excellent wheel adaptability ● Great heat-radiating performance

Tyre Size Ply Rating Load Index Speed Symbol Overall Diameter(mm) Section Width(mm) Thread Width(mm) Thread Depth(mm) Rim Single Max L/P(kg/kPa) Dual Max L/P(kg/kPa)
9.00R20 16PR 144/142 K 1021 252 186 16.5 7.0 2800kg(6175lbs)/900kPa(130psi) 2650kg(5840lbs)/900kPa(130psi)
10.00R20 18PR 149/146 J 1055 277 212 16.5 7.5 3250kg(7160lbs)/930kPa(135psi) 3000kg(6610lbs)/930kPa(135psi)
11.00R20 18PR 152/149 K 1090 292 216 17.5 8.0 3550kg(7830lbs)/930kPa(135psi) 3250kg(7160lbs)/930kPa(135psi)
12.00R20 18PR 154/151 K 1130 296 228 17.5 8.5 3750kg(8270lbs)/830kPa(120psi) 3450kg(7610lbs)/830kPa(120psi)
