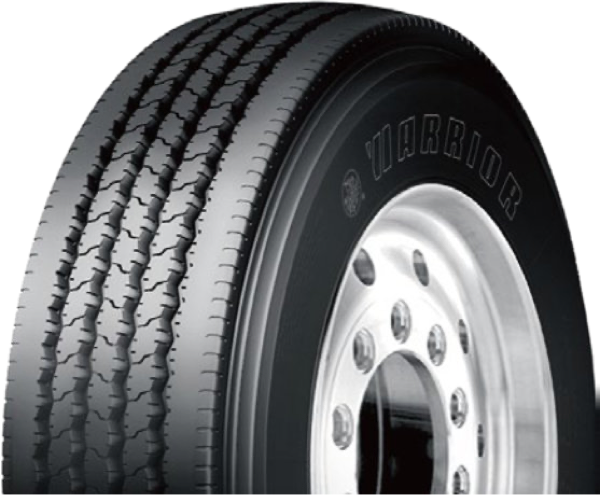

WS320
WS320

Regional

Trailer

● Four grooves and tiny transverse grooves at the edge of pattern block provide excellent water-removal and traction. ● High-performance tread compound promotes wear resistance; special rib design reduces stone pinching and crown damage and longer mileage. ● Low-heat formula reduces tyre heat generation. ● Excellent traction in wet and dry conditions ● Outstanding abrasion-resistance ● Superior low heat performance

Tyre Size Ply Rating Load Index Speed Symbol Overall Diameter(mm) Section Width(mm) Thread Width(mm) Thread Depth(mm) Rim Single Max L/P(kg/kPa) Dual Max L/P(kg/kPa)
7.50R16LT 14PR 122/118 L 808 210 152 12.5 6.00G 1500kg(3305lbs)/770kPa(112psi) 1320kg(2910lbs)/770kPa(112psi)
8.25R15TR 18PR 143/141 J 844 230 160 13 6.50 2725kg(6005lbs)/850kPa(123psi) 2575kg(5675lbs)/850kPa(123psi)
9.5R17.5 18PR 143/141 J 840 236 172 13 6.75 2725kg(6010lbs)/860kPa(125psi) 2575kg(5670lbs)/860kPa(125psi)
245/70R17.5 18PR 143/141 J 790 246 198 14 7.50 2725kg(6005lbs)/875kPa(125psi) 2575kg(5675lbs)/875kPa(125psi)
275/70R22.5 16PR 144/141 M 960 268 207 13 8.25 2800kg(6175lbs)/830kPa(120psi) 2575kg(5675lbs)/830kPa(120psi)
9.5R17.5 16PR 133/131 L 840 236 172 13 6.75 2060kg(4540lbs)/830kPa(120psi) 1950kg(4300lbs)/830kPa(120psi)
