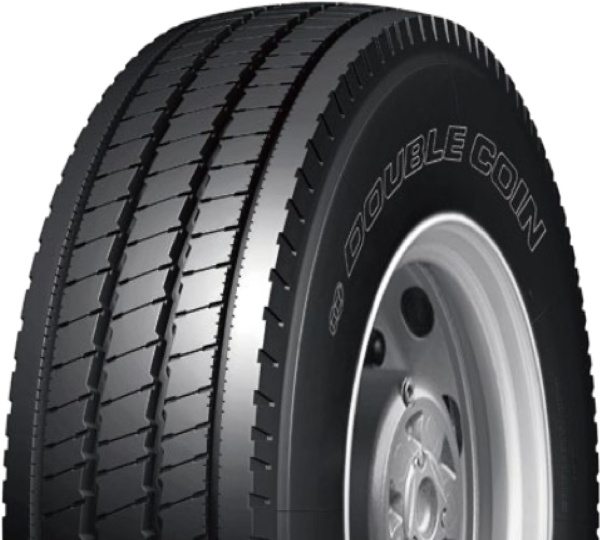

WS306
WS306

CityBus

All Position

● Special pattern design effectively reduces noise and provides strong traction and wet skid resistance. ● Thicken sidewall can effectively reduce the scratch and damage and also the pricking of sharp objects. ● Optimized compound improve the wear resistance and heat dissipating in mounting areas. ● Optimized design of belt layer enhances rigidity and improved handling stability.

Tyre Size Ply Rating Load Index Speed Symbol Overall Diameter(mm) Section Width(mm) Thread Width(mm) Thread Depth(mm) Rim Single Max L/P(kg/kPa) Dual Max L/P(kg/kPa)
11R22.5 16PR 148/145 J 1054 280 216 19 8.25 3150kg(6940lbs)/850kPa(123psi) 2900kg(6390lbs)/850kPa(123psi)
275/70R22.5 18PR 152/148 J 972 283 230 19 8.25 3550kg(7820lbs)/930kPa(135psi) 3150kg(6930lbs)/930kPa(135psi)
295/80R22.5 18PR 152/149 L 1056 304 250 19 9.00 3550kg(7830lbs)/900kPa(130psi) 3250kg(7160lbs)/900kPa(130psi)
