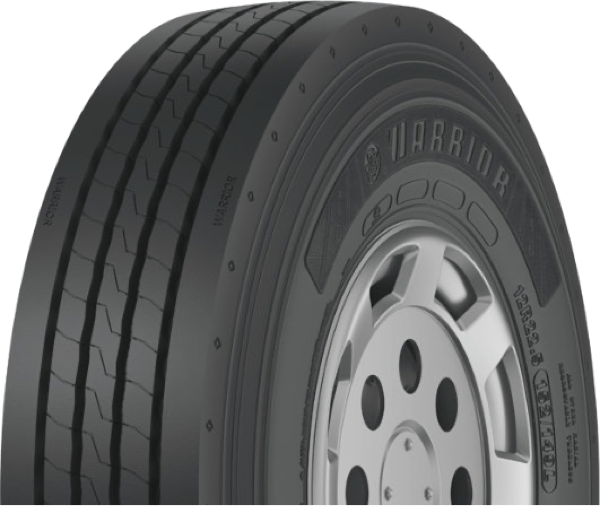

WS270
WS270

Long Haul

All Position

● New sidewall appearance design highlighted the using road condition and vehicle information. ● New wear-resistance formula further improves abrasion-resistance and prolong tyre service life. ● Nylon reinforcement at bead toe can prolong the service life of tire and improve the loading capacity.

Tyre Size Ply Rating Load Index Speed Symbol Overall Diameter(mm) Section Width(mm) Thread Width(mm) Thread Depth(mm) Rim Single Max L/P(kg/kPa) Dual Max L/P(kg/kPa)
295/80R22.5 18PR-E 152/149 M 1042 292 228 14.8 9.00 3550kg(7830lbs)/900kPa(130psi) 3250kg(7160lbs)/900kPa(130psi)
315/80R22.5 18PR-E 156/152 L 1083 302 230 16.5 9.00 4000kg(8820lbs)/830kPa(120psi) 3550kg(7830lbs)/830kPa(120psi)
12R22.5 18PR 152/149 L 1083 297 230 16.5 9.00 3550kg(7830lbs)/930kPa(135psi) 3250kg(7160lbs)/930kPa(135psi)
