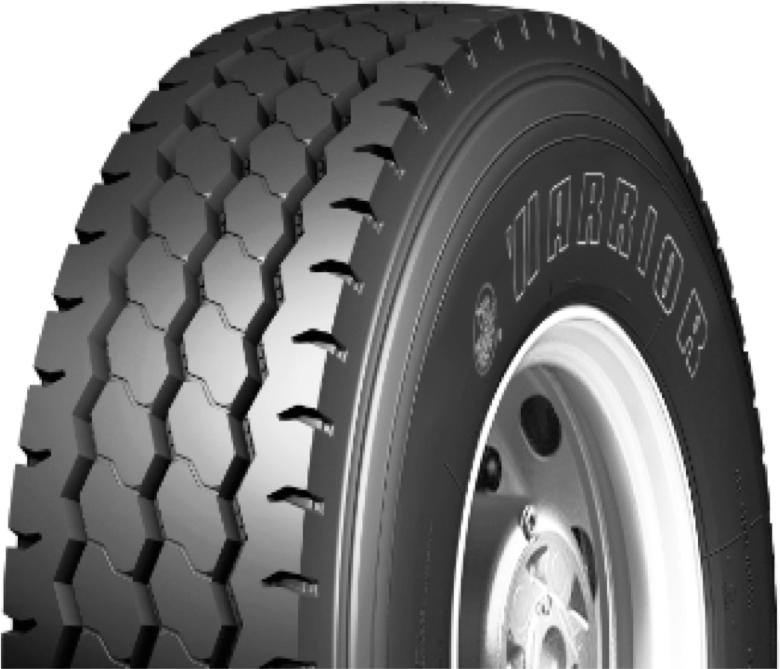

WS239A
WS239A

Long Haul

All Position

Reinforced toe mouth structure, tear-resistant triangle rubber formulation, improve tire load carrying performance. The base rubber formula with low heat generation reduces heat generation during driving and improves the durability of the tire crown under heavy loads. Higher tread saturation, increase the ground contact area, and prolong the service life of the tire. The tread formula uses ultra-abrasion-resistant carbon black and a new polymer, with a deepened tread design to improve abrasion resistance. Optimize the crown design to improve the uniformity of grounding and reduce irregular wear. The bottom of the ditch adopts a stone removal structure to reduce stone inclusion, enhance the impact resistance and puncture resistance of the tire, and effectively reduce the crown failure. The new carcass rubber formula design reduces carcass damage and improves tire retreadability.

Tyre Size Ply Rating Load Index Speed Symbol Overall Diameter(mm) Section Width(mm) Thread Width(mm) Thread Depth(mm) Rim Single Max L/P(kg/kPa) Dual Max L/P(kg/kPa)
12R22.5 18PR 152/149 L 1093 295 236 18 9.00 3550kg(7830lbs)/930kPa(135psi) 3250kg(7160lbs)/930kPa(135psi)
