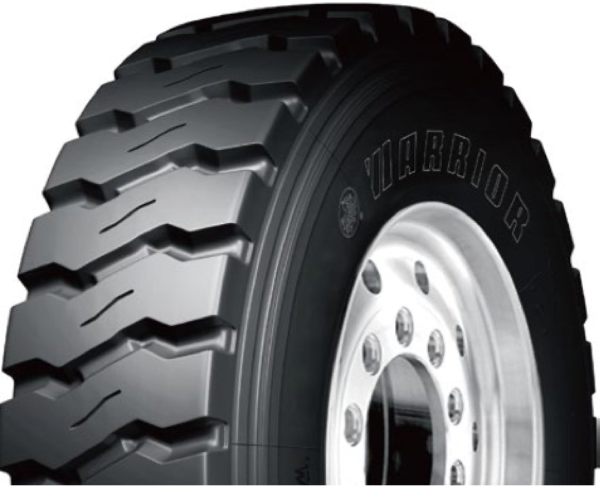

WD989
WD989

Mine & Construction

All Position

● Reinforced carcass design improves tyre load-carrying capacity. ● Unique bead design effectively improves bead resistance against burst and crack. ● Robust block pattern improves more toughness. ● Special tread compound promotes tyre resistance against gnaw and puncture. ● Enhanced side design protects sidewall from impact of external force and scratching. ● Full-depth transverse tread provides strong traction and grip and effectively extends service life. ● Superior load-carrying capacity ● Outstanding resistance against gnaw and puncture ● Longer service life

Tyre Size Ply Rating Load Index Speed Symbol Overall Diameter(mm) Section Width(mm) Thread Width(mm) Thread Depth(mm) Rim Single Max L/P(kg/kPa) Dual Max L/P(kg/kPa)
10.00R20 18PR* 149/146 D 1067 276 212 22 7.5 3250kg(7160lbs)/930kPa(135psi) 3000kg(6610lbs)/930kPa(135psi)
11.00R20 18PR* 152/149 D 1098 292 226 23 8.0 3550kg(7830lbs)/930kPa(135psi) 3250kg(7160lbs)/930kPa(135psi)
12.00R20 20PR* 156/153 D 1137 310 248 23 8.5 4000kg(8820lbs)/900kPa(130psi) 3650kg(8050lbs)/900kPa(130psi)
